RevCut Reverse Chamfering Tool:
Chamfering Bore Exits
Defined chamfering of bores on the rear side from a drill diameter of 1.00 mm
YOUR BENEFITS
Eccentric pass-through of the bore achieves backside chamfering or countersinking (chamfer/countersink diameter up to 2x bore diameter)
Robust and stable tool:
-> No vulnerable hinge or spring mechanism
-> No risk of chip jammingFast machining without direction reversal or spindle stop
Quick and easy cutting edge change – even directly on the machine
Efficient tooling system through modular design and low cost per solid carbide cutting edge
Requires programming of 2 axes plus spindle orientation
Fast delivery of customer-specific cutting edges through semi-standard
Are you interested in the KEMPF RevCut?
Please feel free to send us the completed inquiry form by email. Ideally, attach the drawing of your workpiece directly to the email.

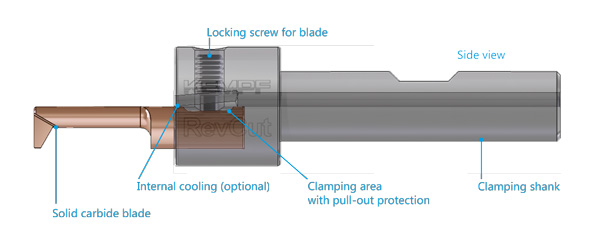

TOOL DESIGN
FUNCTIONAL PRINCIPLE
 |
1. PASS THE BORE ECCENTRICALLY
2. BACKSIDE CHAMFERING
3. WITHDRAW FROM BORE |
APPLICATION EXAMPLE
 |
Component: Power plant component |
MACHINING AND RESULT
Read the detailed application report here in our Case Studies »
