Microlimit:
Countersink Tool for Precise Countersinking
Tool for Precise Countersinking
YOUR BENEFITS
Production of precise countersinks
Cutting forces are absorbed axially and radially via the thrust bearing and radial bearing
Adjustment accuracy is 0.025 mm
Long tool life
Construction consisting of guide pin, countersink, and depth control device (base body)
Video: Applying a Chamfer
The Micro Limit countersink is also available with an overflow protection, which is integrated into the standard tool*. This protection is ideal for use on automatic units. The overflow feature compensates for varying workpiece thicknesses, ensuring that damage to the machine spindle is prevented. The MICRO-Limit with overflow device also simplifies operation on multi-spindle machines.

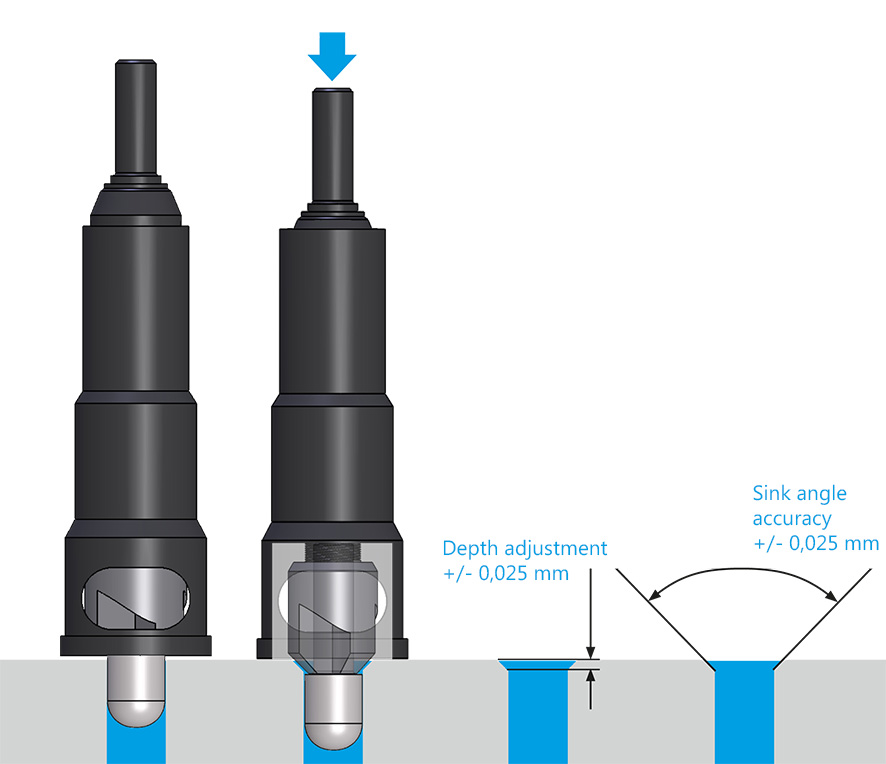

The MICRO LIMIT is set to the desired countersink depth. The countersink and the guiding pin are screwed in to machine the required countersink diameter. The tool is inserted into the bore with the guiding pin. The pin ensures optimal guidance and stability of the countersink. The tool is then advanced until it stops, consistently achieving the same precise countersink.
