Ceramic Fiber Surface Brushes:
Deburring and Polishing in a Single Operation
For economical deburring & polishing of surfaces
Your benefits
Self-sharpening cutting edges for consistently high grinding performance
Powerful grinding properties and excellent deburring results
Deburring & rounding of workpiece edges, grinding, polishing & cleaning of workpiece surfaces
Flexible fiber rods gently adapt to the workpiece contour
No alteration of the workpiece geometry
High tool life for increased productivity and reduced costs
Versatile use on machining centers, special machines, drilling machines
Recommended for robotic applications
Video 1: Deburring with ceramic fiber brushes
|

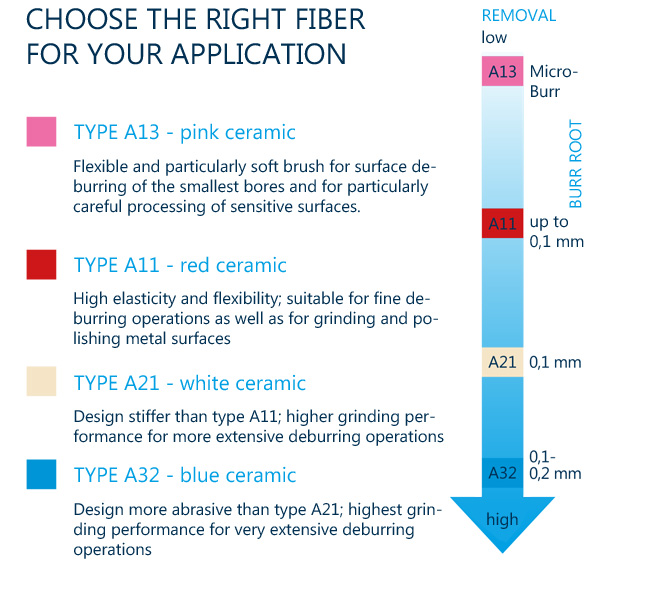

The Al2O3 high performance ceramic fiber rods consist of approximately 1,000 bonded ceramic fibers with diameters of only a few microns. The tips of each individual ceramic fiber form the cutting edges, which are temperature resistant up to about 150 °C. Due to their self-sharpening effect, the grinding performance remains consistently stable. This ensures uniform and excellent polishing and grinding results. |
|
|
Please order the matching attachment sleeve with the brushes! For the ceramic fiber brushes XL, you also need the corresponding sleeve for brush use. This consists of the following parts:
|
|
Deburring bores over Ø 35 mm Bores from Ø 20 mm up to and including Ø 35 mm can be ideally deburred with the three types of the "Ceramic Fiber Cross-Hole Brush Extra Large." For bore diameters over 35 mm, selected ceramic fiber surface brushes may also be suitable. These expand up to 115 mm at longer overhangs and appropriate speeds, enabling deburring of larger bore diameters. For further information and individual consultation, please feel free to contact us. |
|
Video 2: Machining a surface
Video 3: Deburring an engine block
Read application reports from practice on the "ceramic fiber surface brushes":
» Innovative deburring solutions for highly complex aerospace technology
