JB & CNF: Precision Fiber Tool
for Back Deburring
Back deburring of bores with guiding pin in the workpiece for precise results
Your Benefits
Consistent and precise chamfering
Optimal workpiece guidance for deep cuts (up to 10xD)
No need to change rotation direction
Adjustable chamfer size
Mounted guiding piece protects the workpiece surface
Flexible base tool for different workpiece diameters
The tool can be used for the following applications:
- Infeed via overrun piece on the workpiece surface
- Constant and precise chamfering
- Guiding pin enables optimum support in the workpiece and extreme working depths of up to 10×D
- No change in direction of rotation required
- One basic tool covers workpiece diameters from 4.0 mm to 25.0 mm; only the cutting edge and guiding pin need to be adapted to the workpiece
- Chamfer size can be precisely adjusted using the adjusting ring
- Bearing-mounted guiding piece prevents damage to the workpiece
- Standard guiding pieces and cutting edges available for diameters from 4.75 mm to 19.05 mm
Further product information and technical data are available upon request.
|

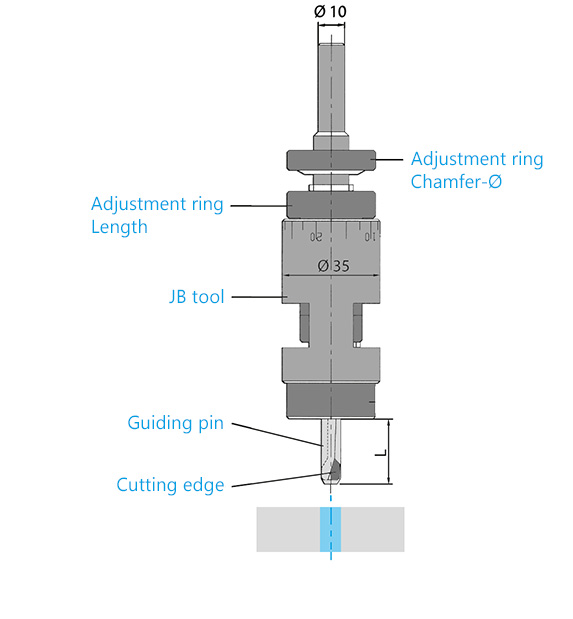

1. ENTRY POSITION |
|
2. WORK FEED |
|
3. REAR SIDE |
